Honda
RS125R
SPECIFICATIONS MODEL RS125R TYPE JR01
LENGTH × WIDTH × HEIGHT 1800mm × 570mm × 995mm
WHEELBASE 1215mm
GROUND CLEARANCE 110mm
SEAT HEIGHT 700mm
CASTER ANGLE 23°30’
WEIGHT (SEMI DRY) 71.5kg
ENGINE TYPE LIQUID COOLED TWO STROKE SINGLE
DISPLACEMENT 124cc
BORE AND STROKE 54mm x 54.5mm
MAX POWER 32.3 / 12250 (kw/RPM)
[44/12250] (ps/RPM)
MAX TORQUE 24.5 / 12255 (Nm/RPM)
[2.5 / 12250] (kgf•m/RPM)
CARBURETOR KEIHIN PJ35 (TH SENSOR&PWJ)
IGNITION DIGITAL CDI
TRANSMISSION 6 SPEED
CLUTCH WET MULTI PLATE
FUEL TANK CAPACITY 14 LITER
ENGINE OIL CAPACITY 0.5 LITER
FLAME TYPE ALUMINUM TWIN TUBE
BRAKE FRONT : 296mm SINGLE DISK
REAR : 186mm SINGLE DISK
WHEEL FRONT : 2.50-17
REAR : 3.50-17
SUSPENSION FRONT : INVERTED TELESCOPIC FORK
REAR : SWING ARM
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

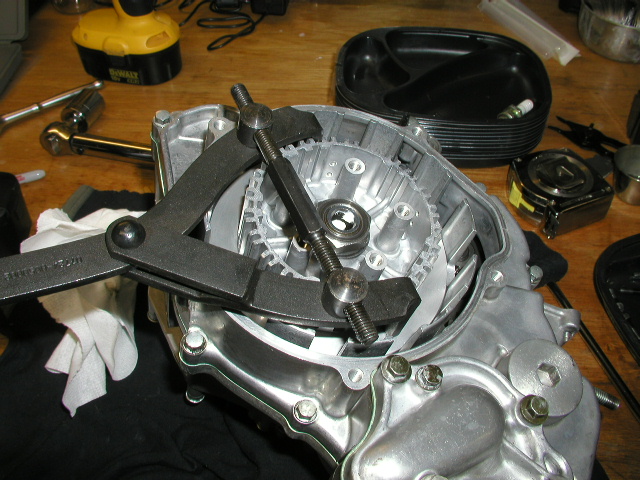

Clutch basket and holding tool |
|
|
|
|
|
|
|
|
|
|
|
|
|

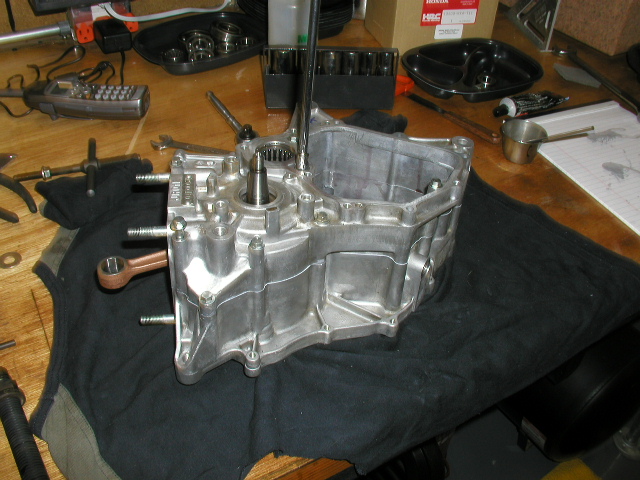

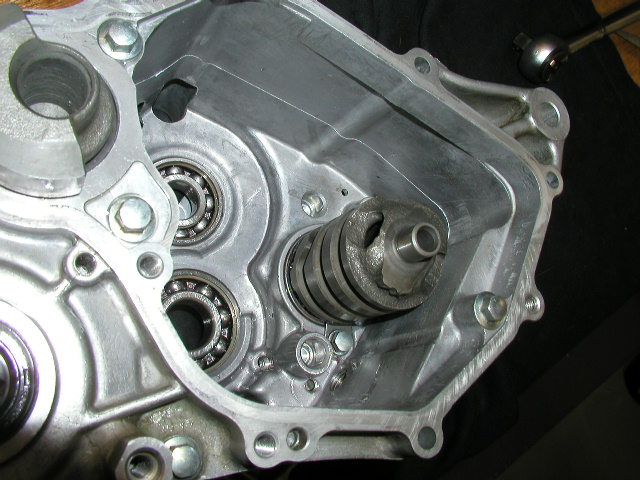

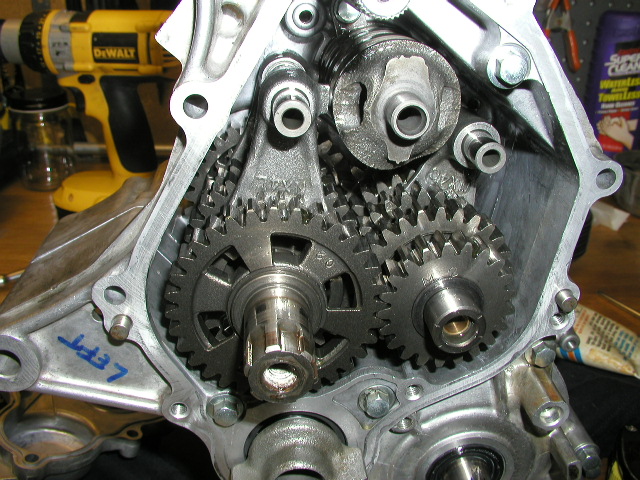

Gearbox case showing shift change drum |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

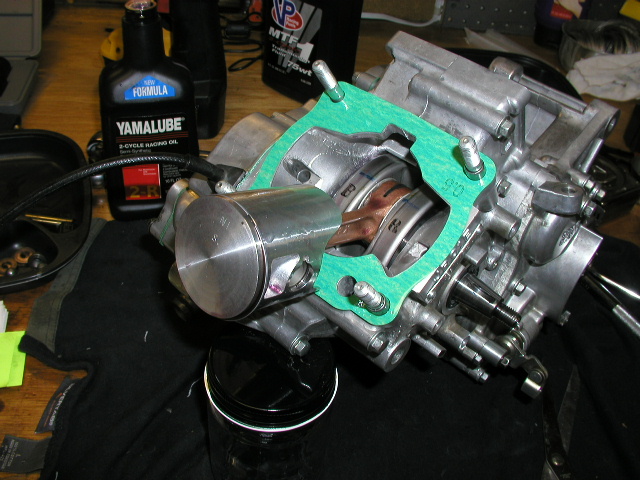

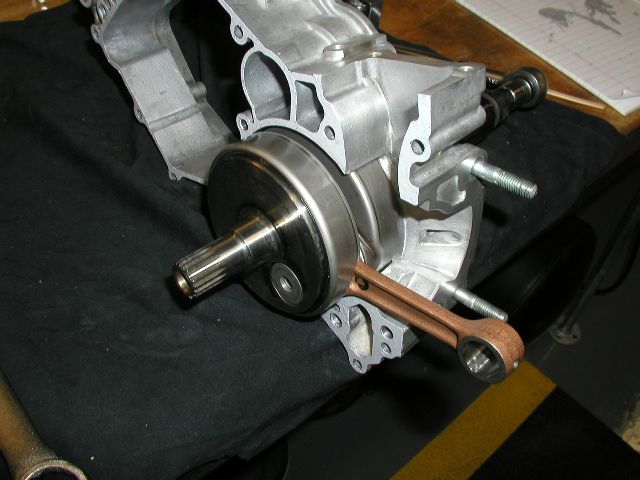

Engine case complete with crank |
|
|
|
|
|
|
|
|
|
|
|
|
left side case minus primary drive |
|
|
|
|
|
|
|
|
|
|
|
|
|
primary drive and timing plate |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

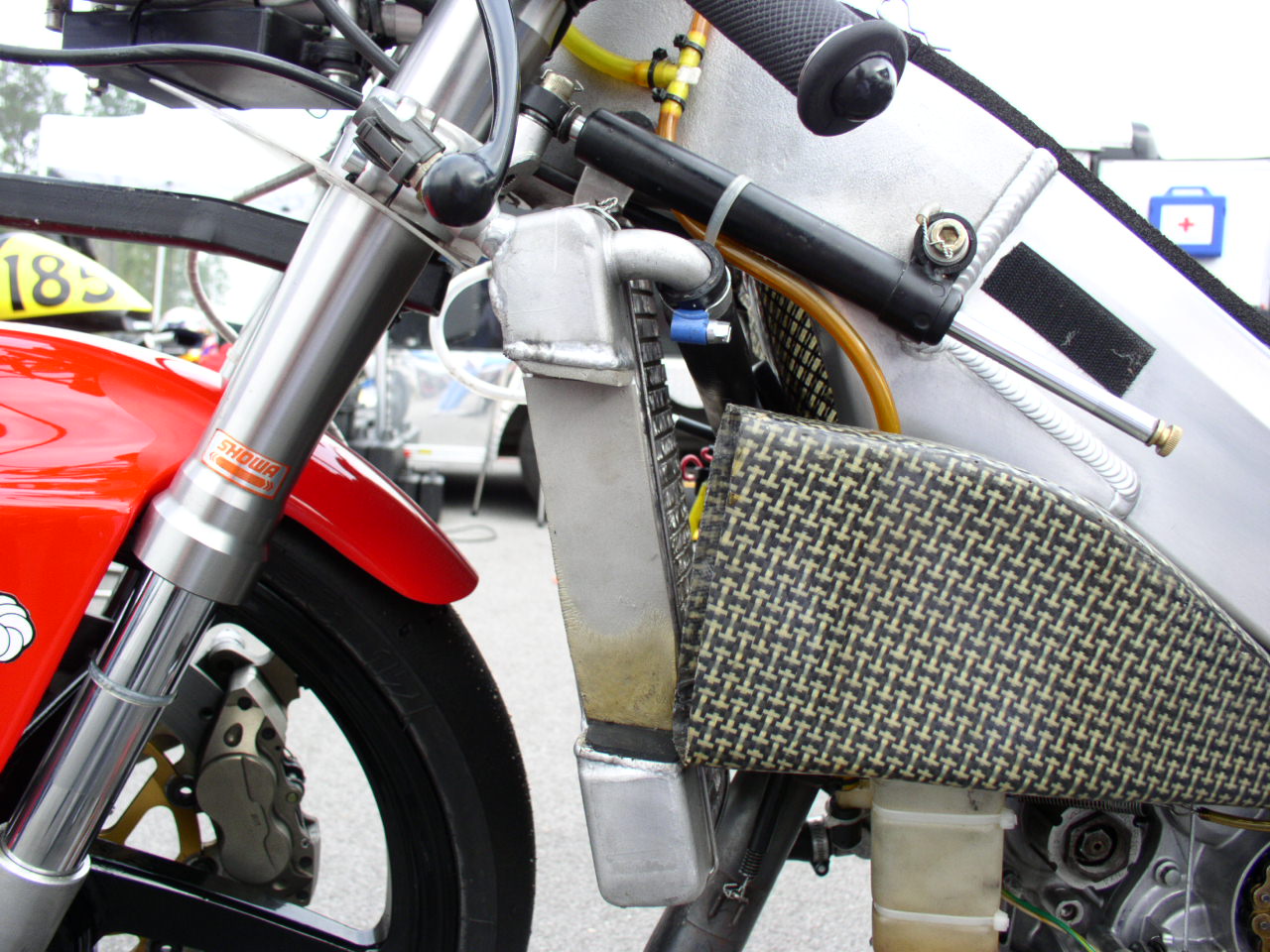

Airbox showing modified radiator |
|
|
|
|
|
|
|
|
|
|
|
|

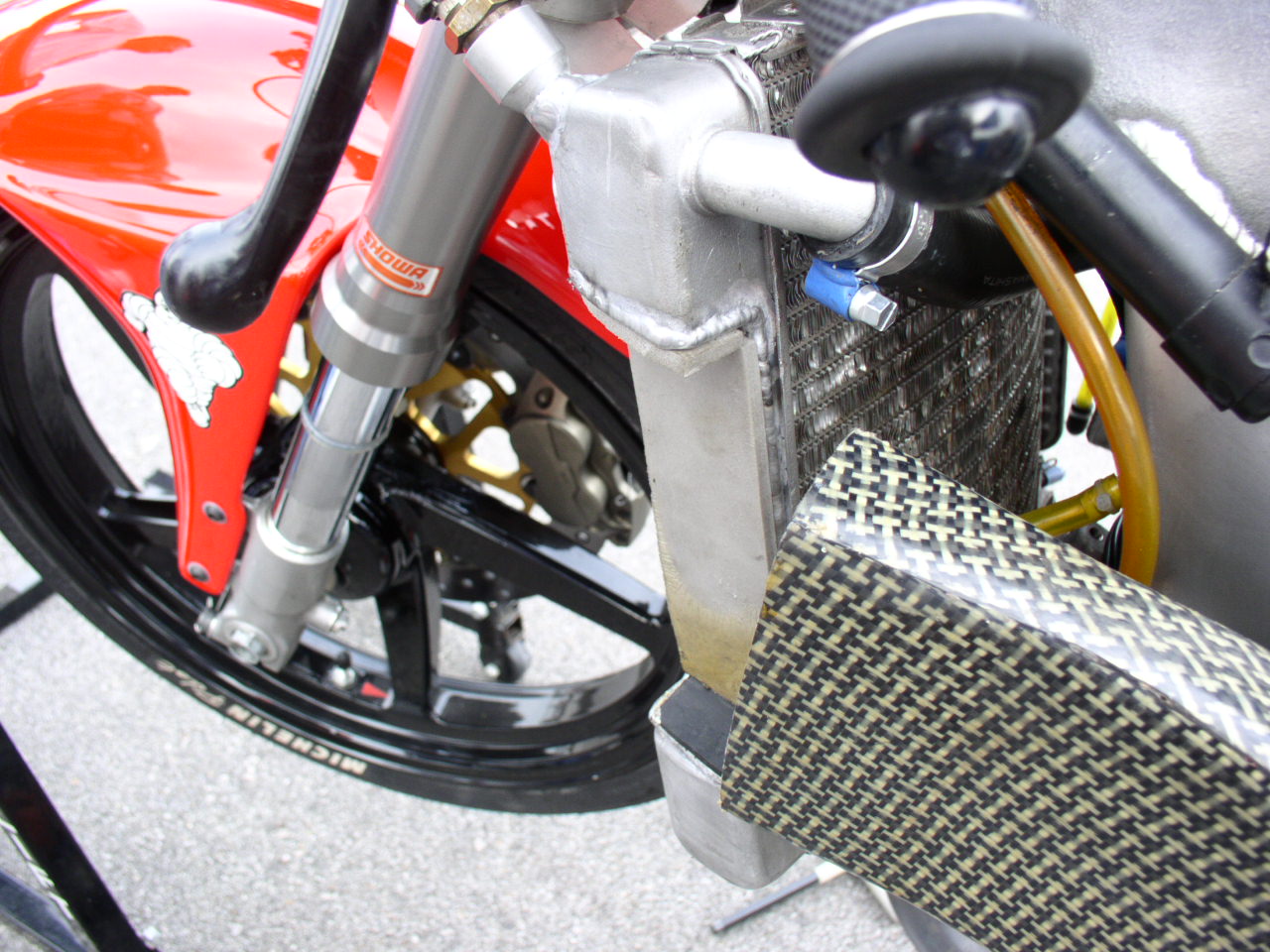

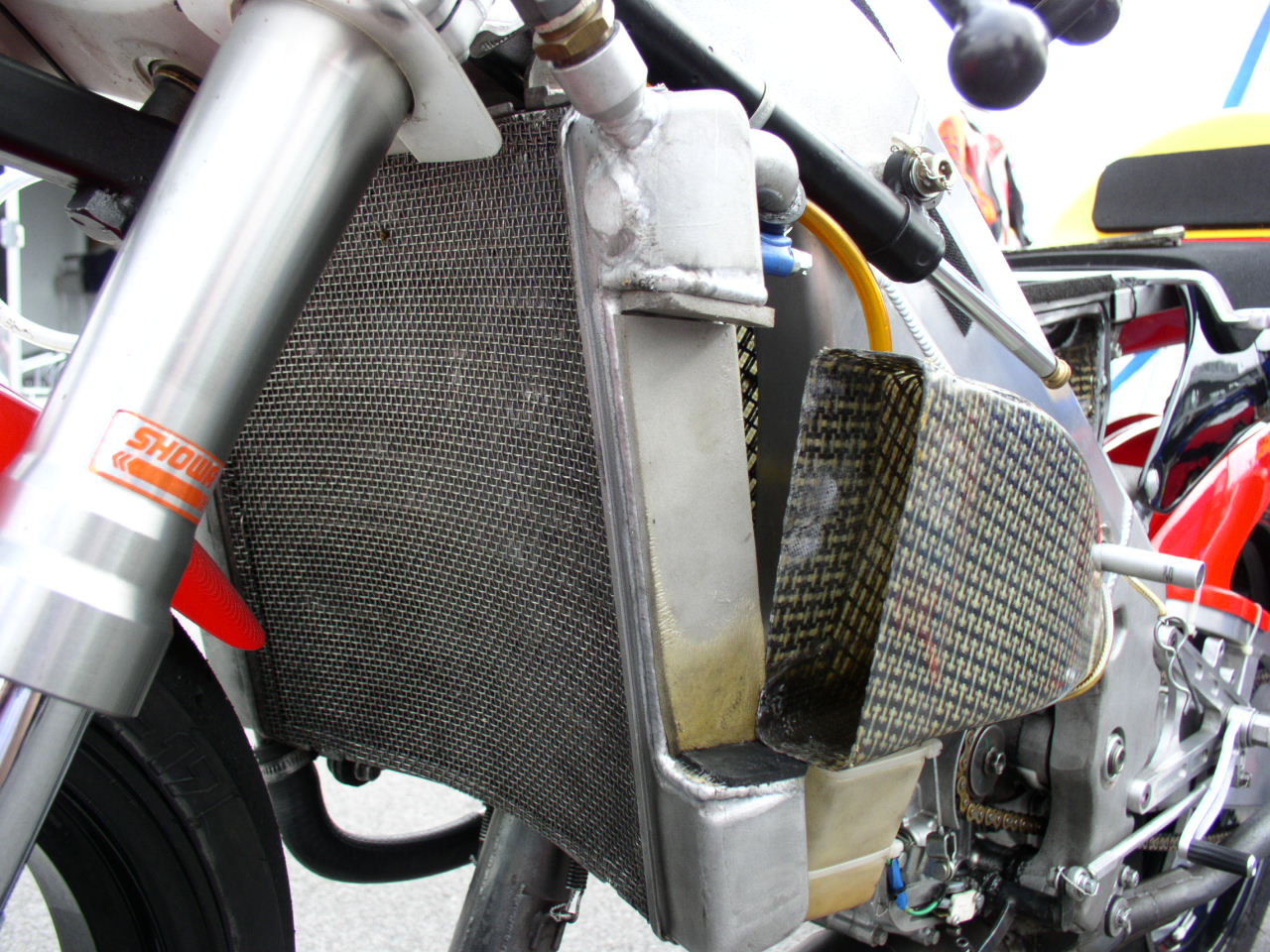

modified radiator for pressurised airbox |
|
|
|
|
|
|
|
|
|
|
|
