Yamaha TZ250

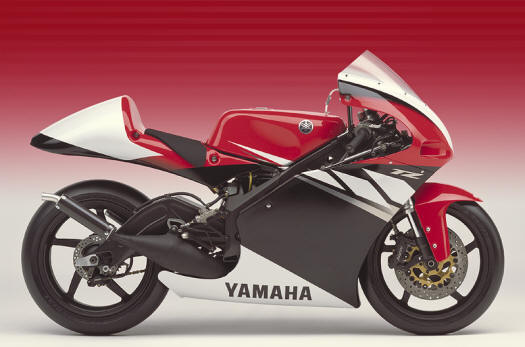

Yamaha "TZ250" specification statistics

Total length × full × total height 1,955mm×650 mm×1,163mm
Wheelbase 1,342mm
Road space 112mm
Semi- dry weight 102kg
Motive for action machine type Water cooling 2 strokes crank case reed valve
Cylinder several arrangements V type 2 cylinder
Total cubic displacement 249cm3
Inside diameter × distance 54.0mm×54.5mm
Compression ratio 7.1 - 7.7: 1
The highest output 68.4kW (93PS)/12,500r/min
Largest torque 53.9N ・ m (5.5kgf ・ m)/11,750r/min
Starting system Push-starting system
Lubricating system Mixture oil supply
Motor oil capacity 0.5L
Fuel tank capacity 23L
Carburetor type TMX χ 38×2
Ignition system C.D.I.
Primary reduction gear ratio/secondary reduction gear ratio 2.524 / 2.571
Clutch type Dry multiple plate coil springs
Transmission type Regular gearing type advance 6 step
Change gear ratio 1st gear 1.938 and 2nd gear 1.476 and 3rd gear 1.238
4th gear 1.091 5 fast 1.000 6 speeds 0.926
Frame type Diamond
Caster/trail 22°/82mm
Tire size (before/after) 120/60R17/165/55R17
Brake type (before/after) Hydraulic double disk/hydraulic disk
Suspension system (before/after) Telescopic/swing arm

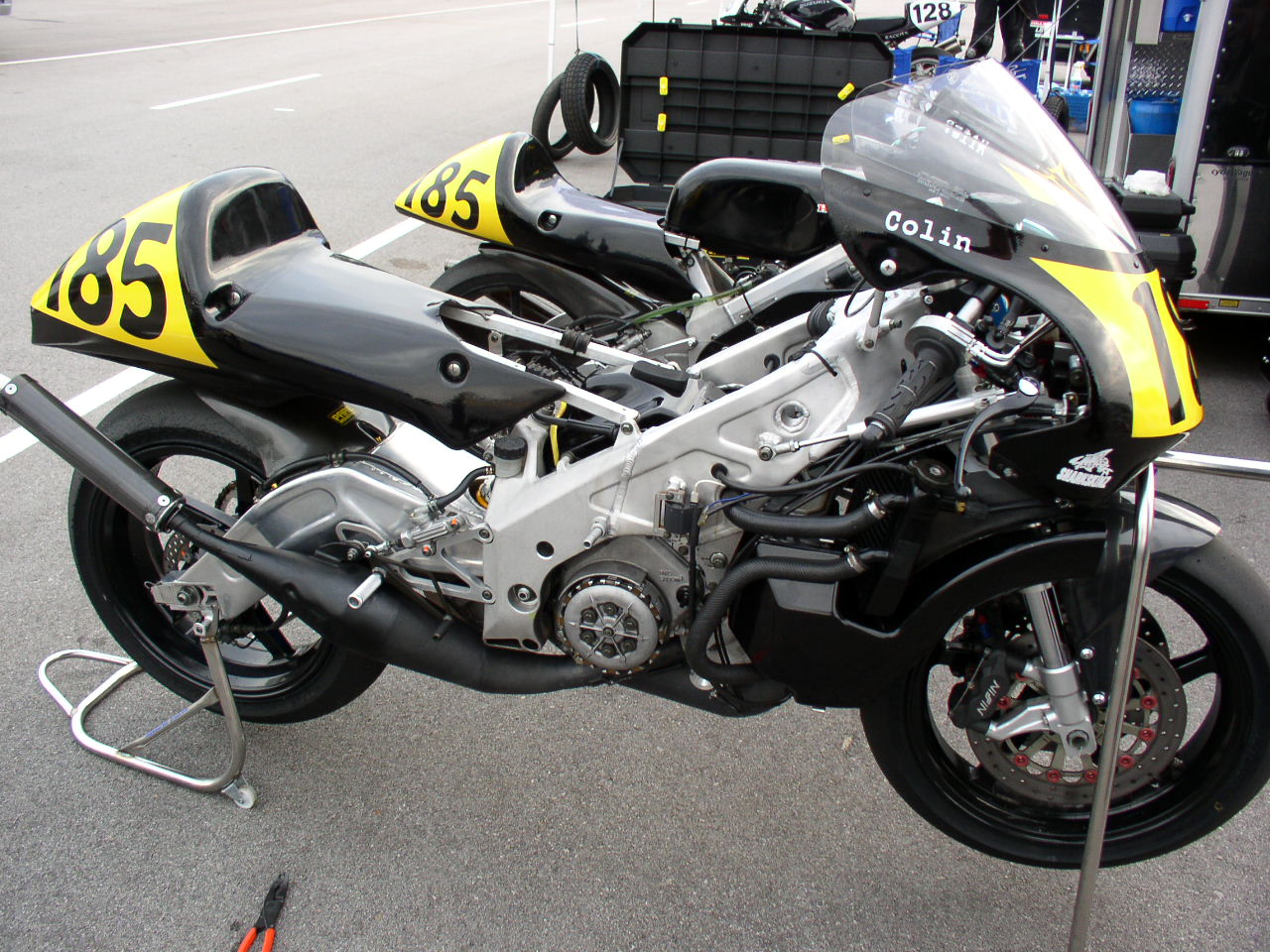

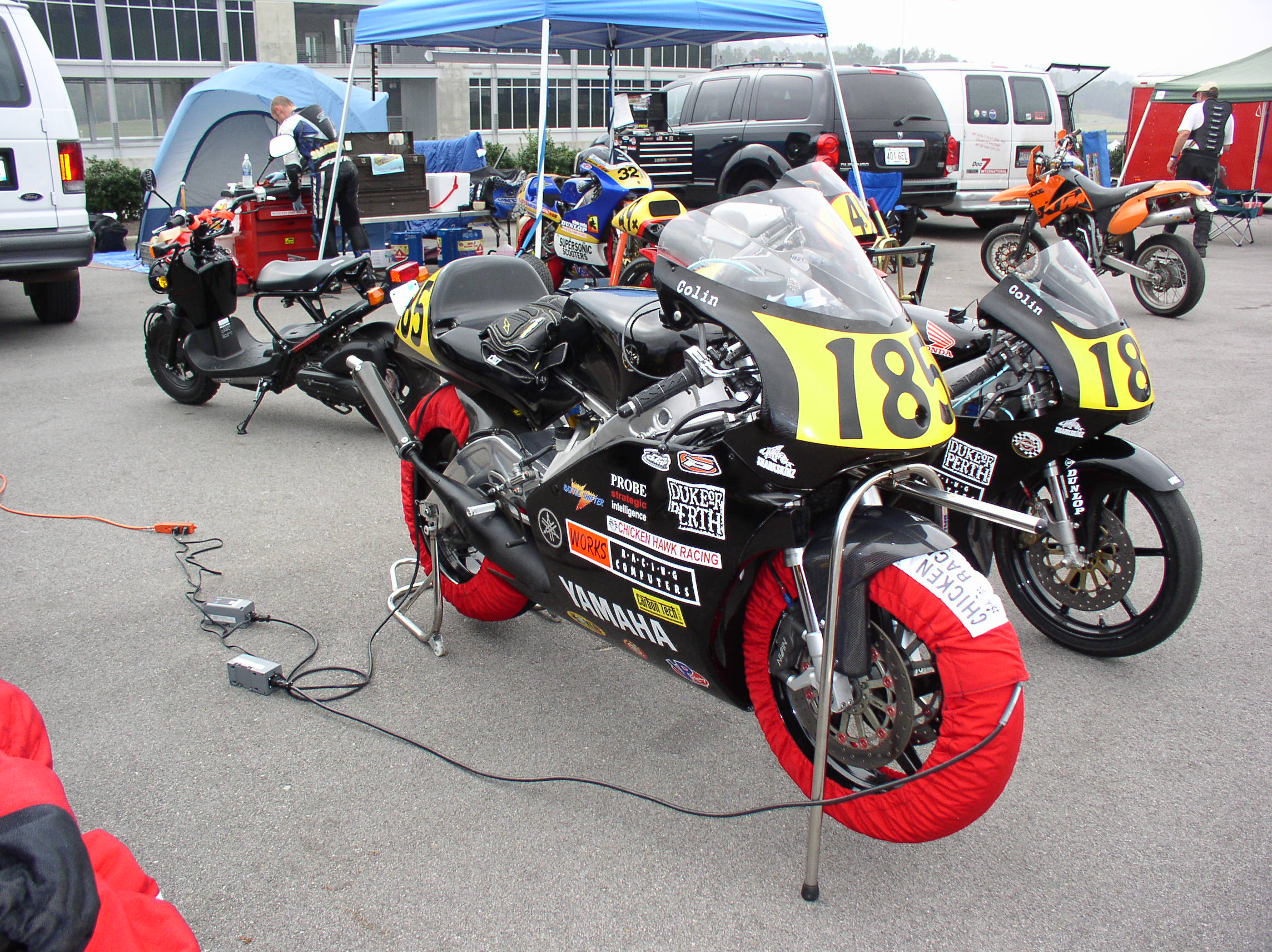

Colin's 2002 TZ with tire warmers

TZ250 minus bodywork and wheels

TZ250 minus bodywork and wheels

TZ250 minus bodywork and wheels

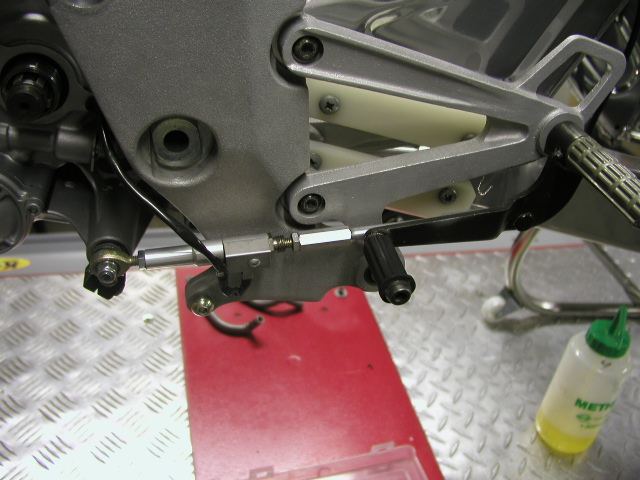

Electronic shifter

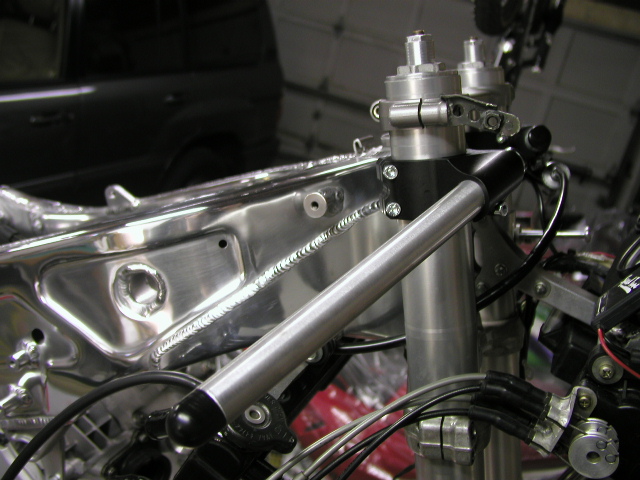

Clipon and stearing head

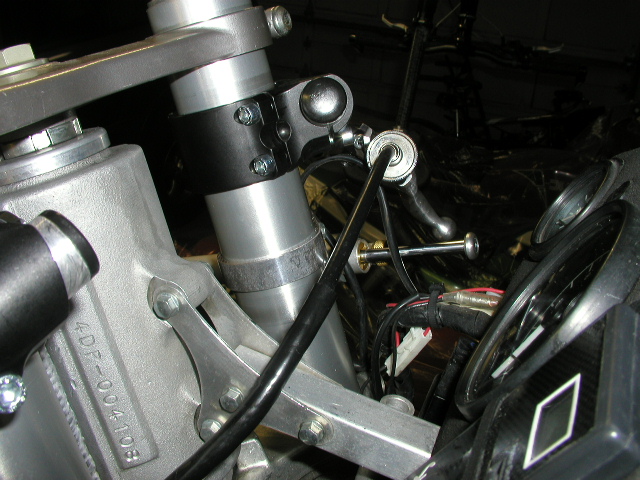

Clutch cable

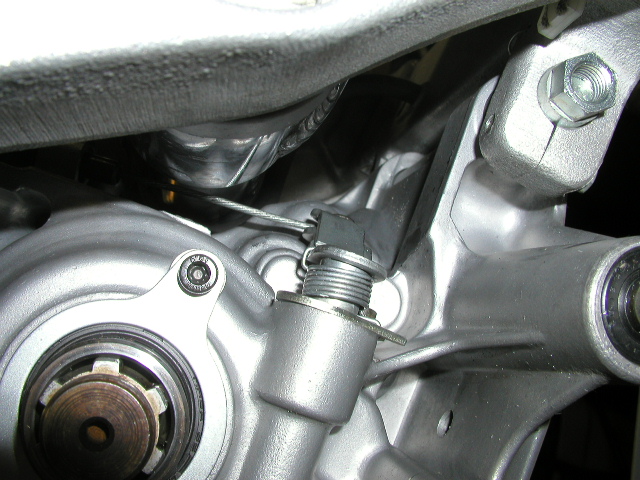

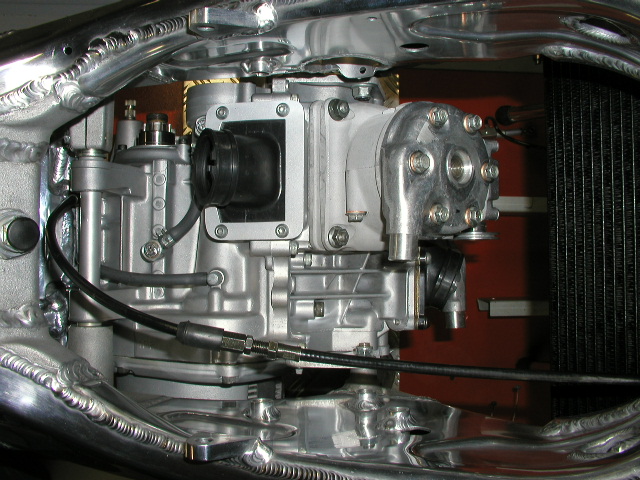

Clutch cable to engine adjuster

Engine in frame

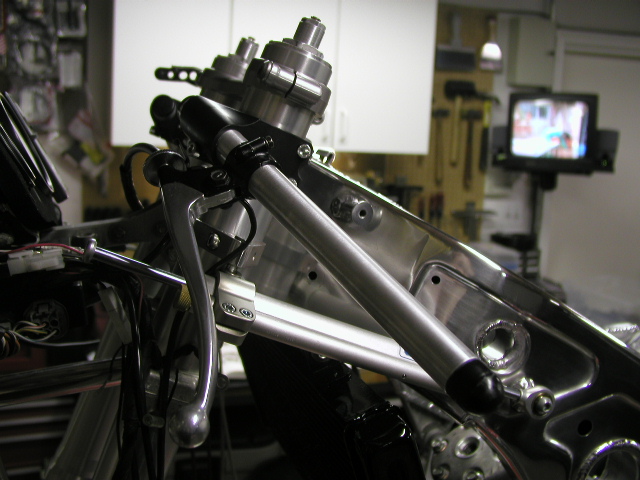

Clutch lever

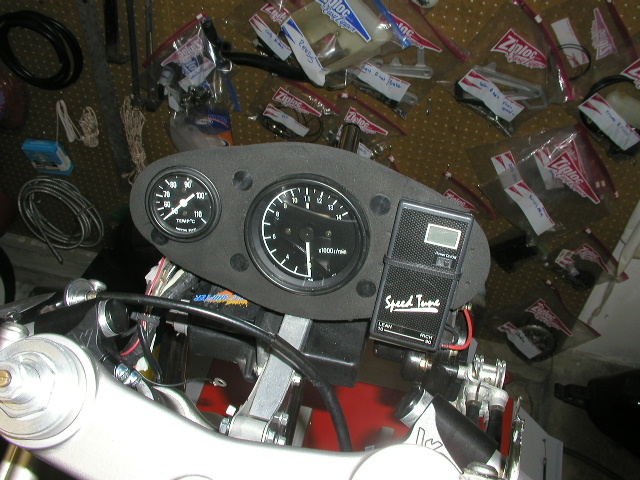

Instrument cluster

Oil plug and inspection

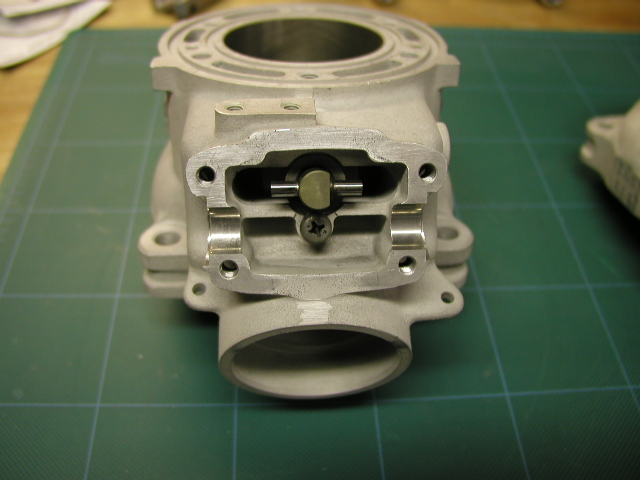

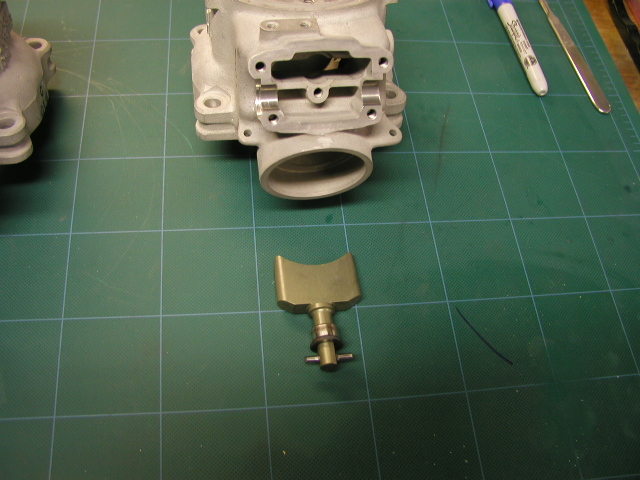

Cylinder and Powervalve

Cylinder and powervalve installed

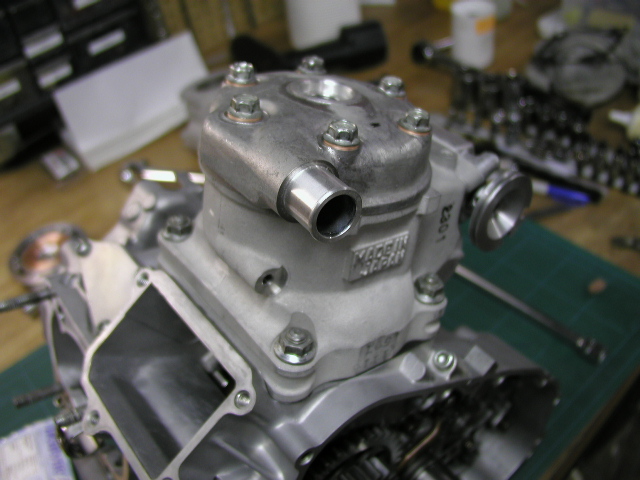

Cylinder and head

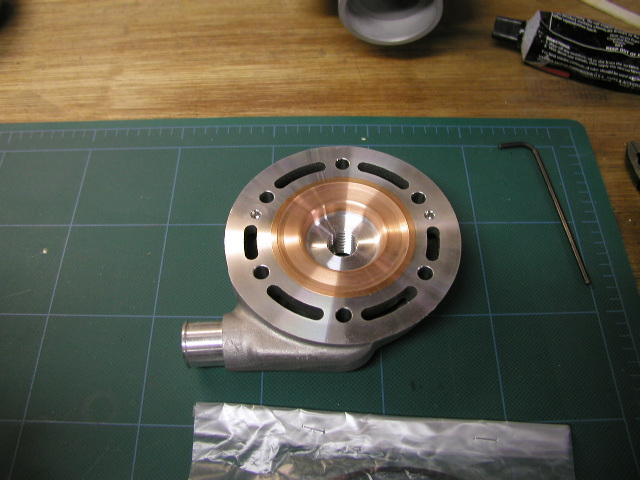

Cylinder head

Gear cluster

Cassette gearcluster installation

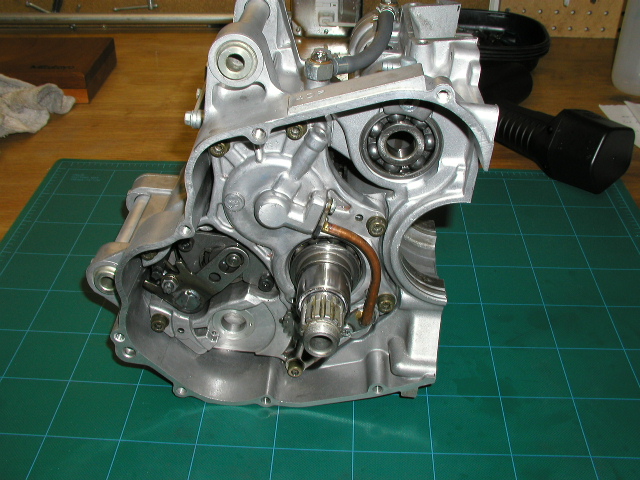

Gearcluster installed

Shift drum

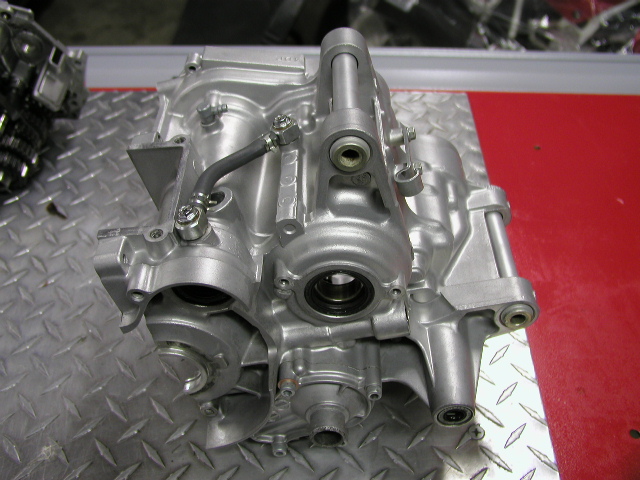

Front engine case

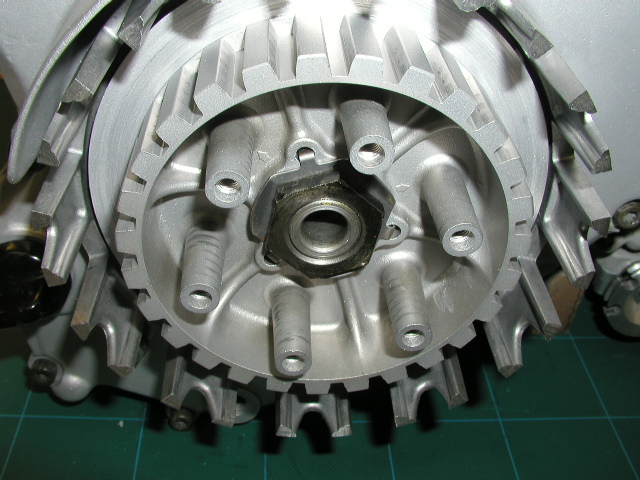

Clutch boss

Dry Clutch

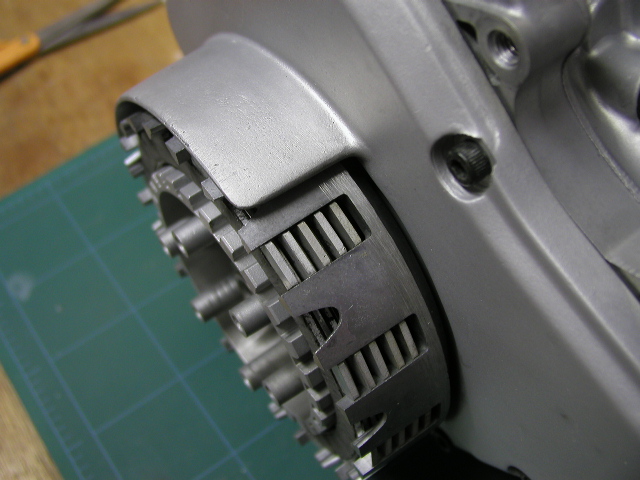

Clutch plates

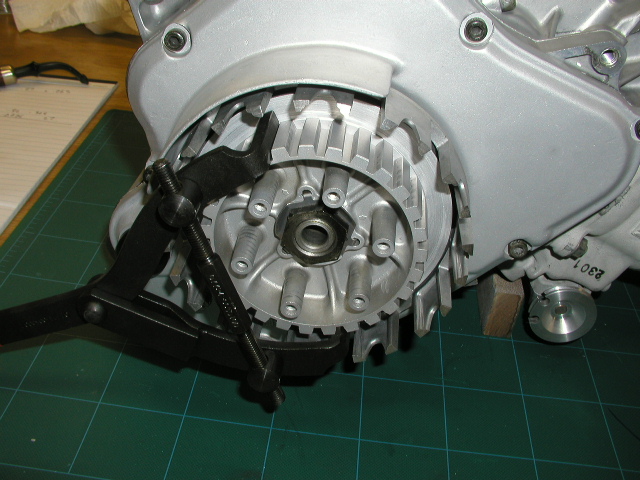

Clutch holding tool

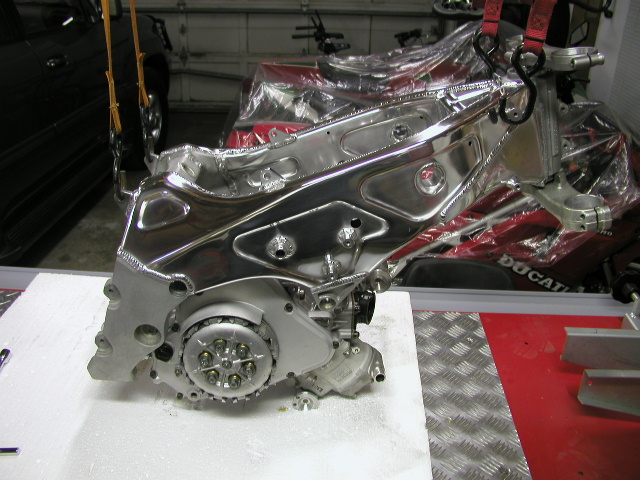

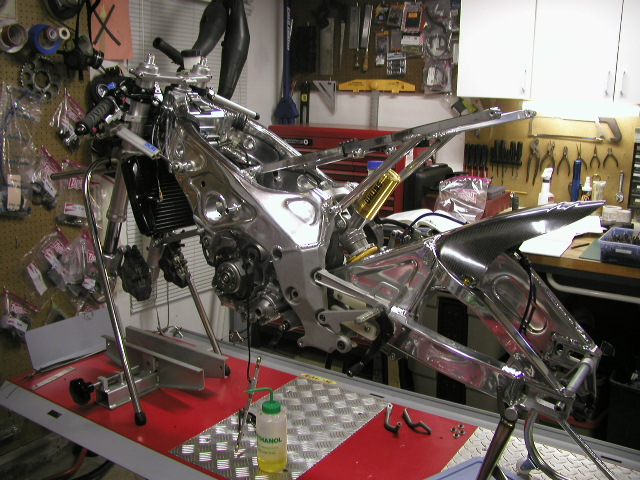

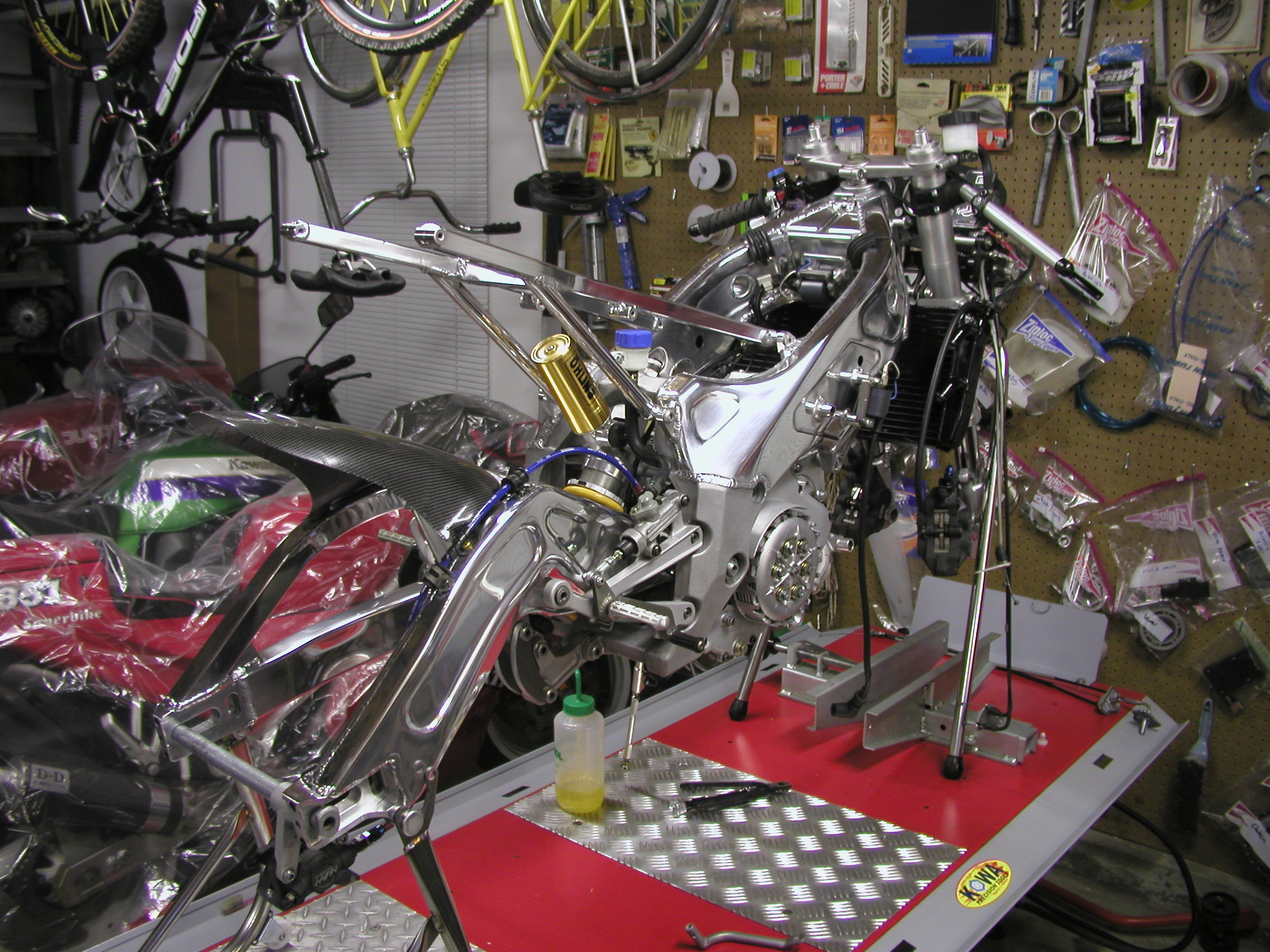

Frame and engine

Ohlins shock

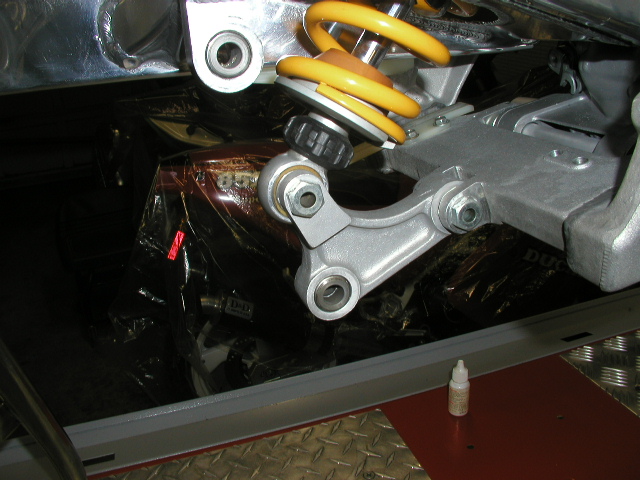

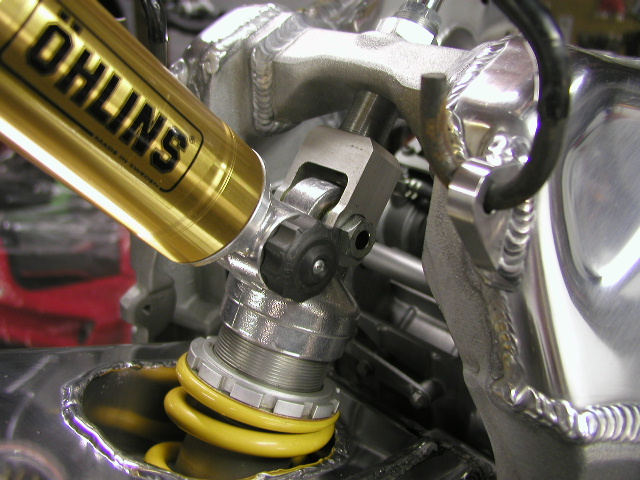

Shock bottom linkage

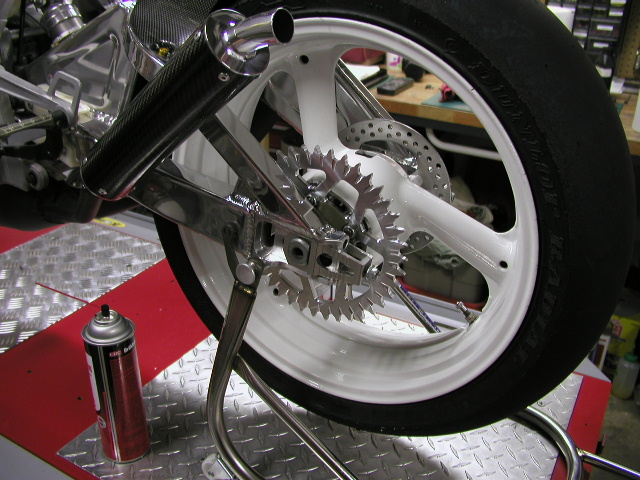

Rear wheel and sproket

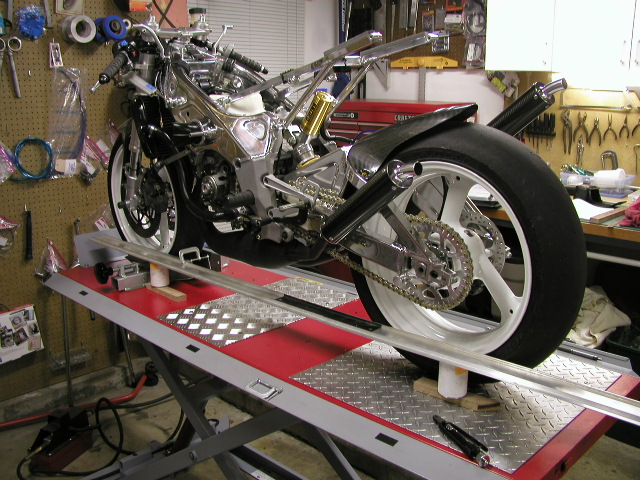

Wheels installed

Colin's TZ250 without tank and fairing
